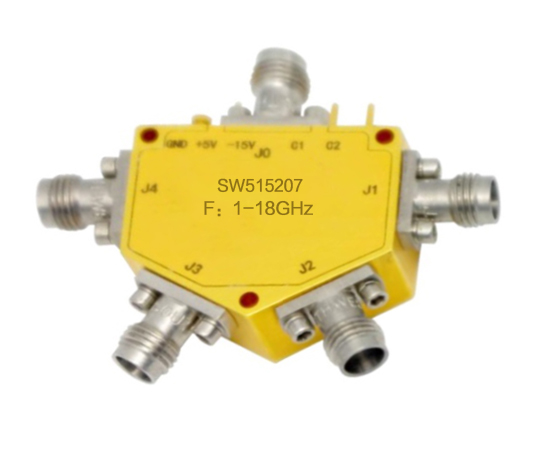

SP4T 同轴开关 SW515207
⚫ SMA Connector
⚫ Absorptive
|
Electrical Specifications |
|
|
Operating Frequencies |
1 to 18 GHz |
|
VSWR |
2.0 Max. |
|
Isolation |
60 dB Min. |
|
Insertion Loss |
3.5 dB Max. |
|
Phase |
±30° |
|
RF Input Power |
30 dBm |
|
DC Power Dissipation |
1.2 W |
|
Bias Current (+5V /-5V) |
200 / 50 mA |
|
Switching Time |
100 ns |
|
Connectors |
SMA (F) |
|
Control Port |
J30J (M) |
|
Characteristic Impedance |
50Ω |
|
Finishing |
Gold Plating |
|
Material |
Aluminum |
|
Weight |
0.03 kg |
|
Operating Temperature |
-45 to +85℃ |
|
Storage Temperature |
-55 to +125℃ |
Truth Table:
|
Control Input TTL |
Signal Path State |
|||
|
E4 |
E3 |
E2 |
E1 |
|
|
1 |
1 |
1 |
0 |
J0-J1 |
|
1 |
1 |
0 |
1 |
J0-J2 |
|
1 |
0 |
1 |
1 |
J0-J3 |
|
0 |
1 |
1 |
1 |
J0-J4 |
|
1 |
1 |
1 |
1 |
ALL OFF |
